Replace Air Filter
Use the following instructions to replace an expired air filter every 6 months.
The air filter is single use and covers the fan in the back of the instrument. It ensures proper cooling and prevents debris from entering the system. The instrument is shipped with one air filter installed and one spare. Additional filters can be purchased separately from Illumina.
|
1.
|
Position the instrument so you can easily access the back. |
|
2.
|

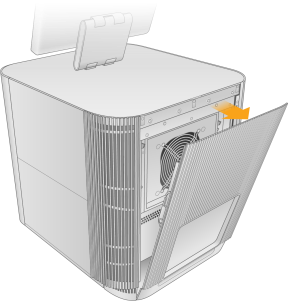

On the back on the instrument, pull the top edge of the rear panel away from the instrument to access the air filter. |
|
3.
|
Remove and discard the used air filter. |
|
4.
|
Insert the new air filter into the tray. |
Make sure to insert the filter so that the filter tab faces outward and sits against the rear panel.
|
6.
|
Return the instrument to the original placement. |
