TruSeq CD Indexes (Single Indexing With Dual Index Adapters)
The following table depicts the Index 1 portion of the plate layout for TruSeq DNA CD Indexes and TruSeq RNA CD Indexes (formerly TruSeq HT Indexes).
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|
A |
D701 |
D702 |
D703 |
D704 |
D705 |
D706 |
D707 |
D708 |
D709 |
D710 |
D711 |
D712 |
B |
D701 |
D702 |
D703 |
D704 |
D705 |
D706 |
D707 |
D708 |
D709 |
D710 |
D711 |
D712 |
C |
D701 |
D702 |
D703 |
D704 |
D705 |
D706 |
D707 |
D708 |
D709 |
D710 |
D711 |
D712 |
D |
D701 |
D702 |
D703 |
D704 |
D705 |
D706 |
D707 |
D708 |
D709 |
D710 |
D711 |
D712 |
E |
D701 |
D702 |
D703 |
D704 |
D705 |
D706 |
D707 |
D708 |
D709 |
D710 |
D711 |
D712 |
F |
D701 |
D702 |
D703 |
D704 |
D705 |
D706 |
D707 |
D708 |
D709 |
D710 |
D711 |
D712 |
G |
D701 |
D702 |
D703 |
D704 |
D705 |
D706 |
D707 |
D708 |
D709 |
D710 |
D711 |
D712 |
H |
D701 |
D702 |
D703 |
D704 |
D705 |
D706 |
D707 |
D708 |
D709 |
D710 |
D711 |
D712 |
The following figures illustrate pooling strategies for libraries ligated with the Index 1 (i7) and Index 2 (i5) adapters, where only Index 1 is sequenced.
• | Circles indicate index adapter combinations that can be combined in a pool. |
• | Dark gray indicates wells that are not used for pool plexity ≥ 2, but can be used for one-plex pools (single libraries). |
These strategies are designed for 2–12-plex pools. For 7–11‑plex pools, combine any of the 2–6-plex pools.

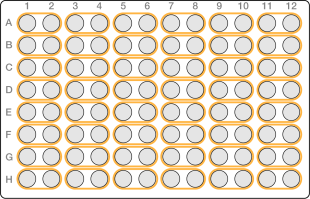

Starting at an odd-numbered column, use two consecutive wells across a row.

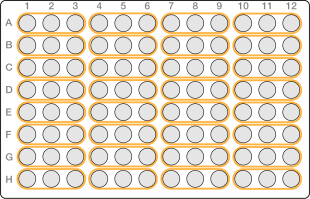

Starting at columns 1, 4, 7, or 10, use three consecutive wells across a row.

Starting a column 1, 5, or 9, use four consecutive wells across a row.

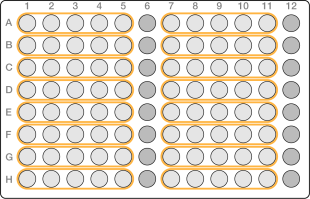

Starting at column 1 or 7, use five consecutive wells across a row.

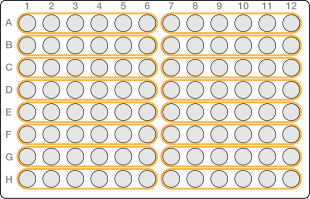

Starting at column 1 or 7, use six consecutive wells across a row.

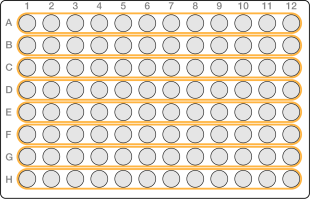

Use an entire row.
