Consumables Details

This section includes additional information on the supplied consumables.

Dry Cartridge

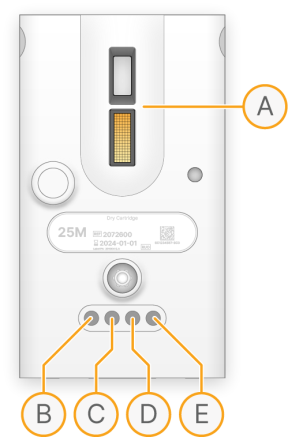

The dry cartridge contains the flow cell and reagents for a run. After the run begins, the library and reagents are automatically transferred from the cartridge to the flow cell. When transporting, carry only one cartridge at a time and grip the cartridge by the sides.

Avoid touching the flow cell (A) to prevent damage to the flow cell and its interfaces.

A. Flow Cell—Sequencing surface
B. Library—Reagent port for loading template library
C. CP1—Reagent port for loading Custom Read 1 primers
D. CP2—Reagent port for loading Custom Read 2 primers
E. CP3—Reagent port for loading Custom Index primers

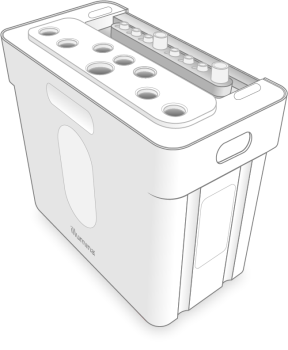

Wet Cartridge

The prefilled wet cartridge contains the sequencing reagents and buffer, ready to be loaded directly onto the instrument.

The wet cartridge is available in two configurations:

Refer to Sequencing Consumables for the correct catalog number for the reagent kit.

Configuration

Kit Name

A

MiSeq i100 Series 5M Reagent kit (300 cycles)

MiSeq i100 Series 25M Reagent kit (100 cycles)

MiSeq i100 Series 25M Reagent kit (300 cycles)

MiSeq i100 Series 50M Reagent kit (100 cycles)

MiSeq i100 Series 50M Reagent kit (300 cycles)

B

MiSeq i100 Series 5M Reagent kit (600 cycles)

MiSeq i100 Series 25M Reagent kit (600 cycles)

MiSeq i100 Series 25M Reagent kit (1,000 cycles)

MiSeq i100 Series 50M Reagent kit (600 cycles)

MiSeq i100 Series 100M Reagent kit (100 cycles)

MiSeq i100 Series 100M Reagent kit (300 cycles)
